hinged belt chip conveyor

Hinged chip conveyor belt
It runs smoothly during the conveying process, is easy to install and replace, and has a long service life. It is used for medium and heavy load conveying.
A proven conveyor solution for a variety of materials, chip types, and chip loads. Hinge belts, the most common conveyor type, can be modified to handle more troublesome waste like tough scrap and heavy parts.

1.Hinged belt chain material: black A3 carbon steel, Galvanized steel, 1Cr13 steel, stainless steel 201/304/316L.

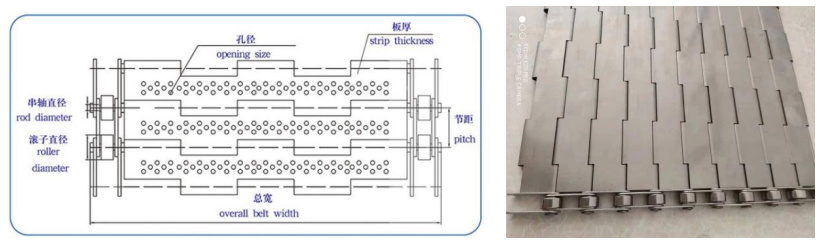

2.Parameter

Width	Pitch	Through Shaft Diameter	Roller Diameter	Steel belt thickness
As customer required	31.75mm	Φ8	Φ19.05	1.0/1.5/2.0mm
As customer required	38.1mm	Φ8	Φ22.23	1.0/1.5/2.0mm
As customer required	50.8mm	Φ10	Φ28.58	1.0/1.5/2.0/3.0mm
As customer required	63.5mm	Φ10	Φ40	1.5/2.0/3.0mm
As customer required	76.2mm	Φ14	Φ44.45	1.5/2.0/2.5mm
As customer required	101.6mm	Φ14	Φ57.15	2.5/3.0/4.0mm
As customer required	150mm	Φ20		2.5/3.0/4.0mm

Hinged belt type

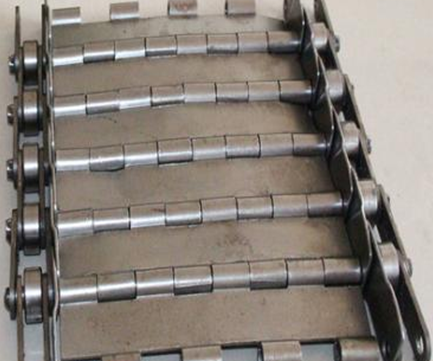

Flat conveyor belt chain

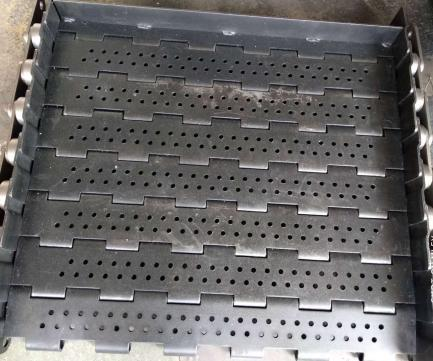

Perforated conveyor chain

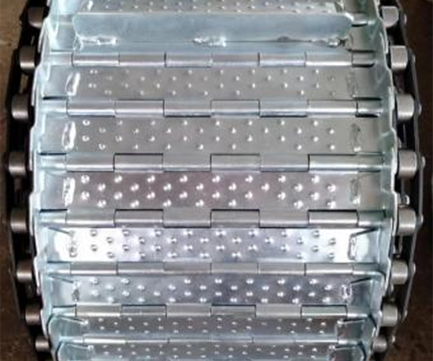

Bump belt conveyor chain

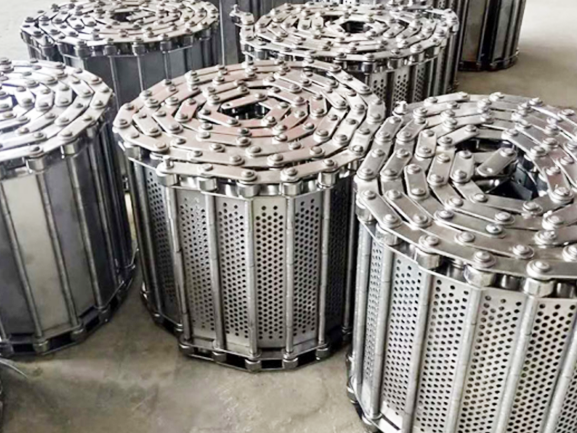

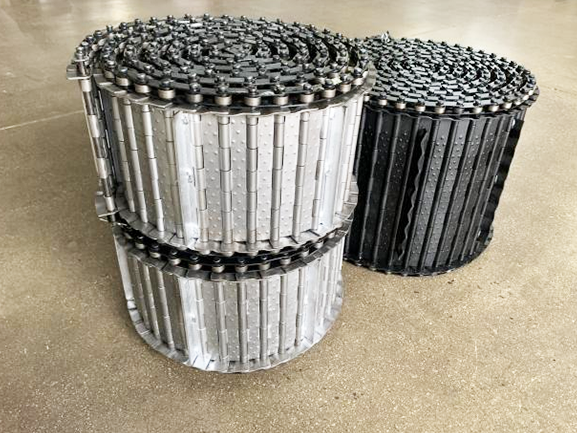

Finished product photos

black A3 carbon steel

Galvanized steel

1Cr13 steel

stainless steel 304

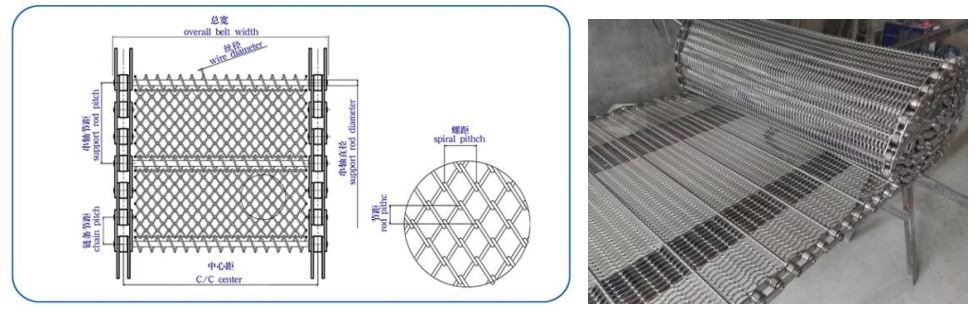

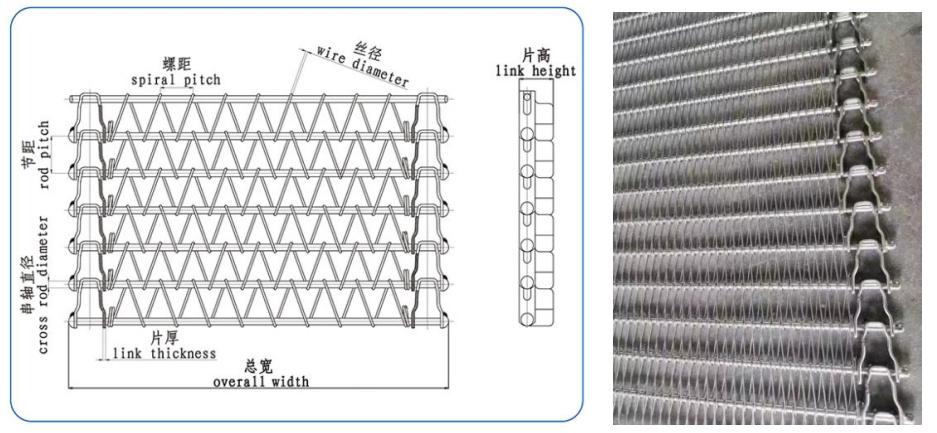

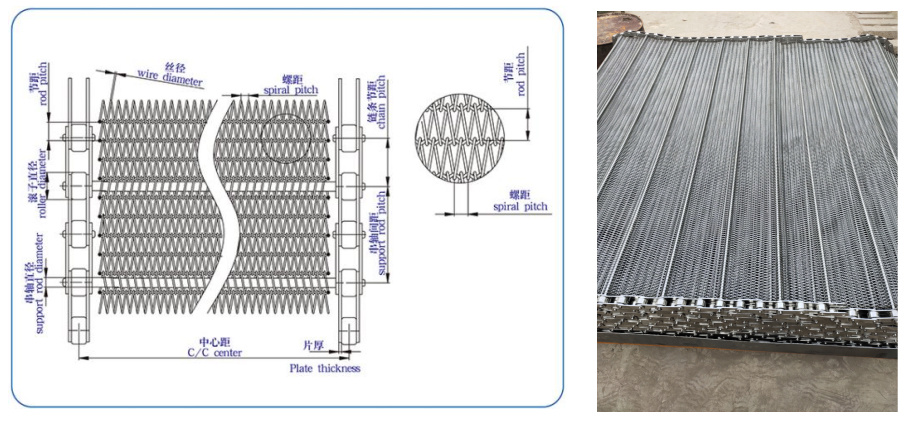

Steel wire mesh belt
Steel wire mesh belt characteristics: flexibility, smooth running, easy to install, maintain and repair, it can resistance from -55℃ to 1150℃.
material: A3 carbon steel, galvanized steel, stainless steel 304/316.
Usually used in baking oven, quenching tank, washing machine fryer freezer etc

1.Roller chain conveyor belt
